Complex 9 launch pad
Complex 9 launch pad Zoom

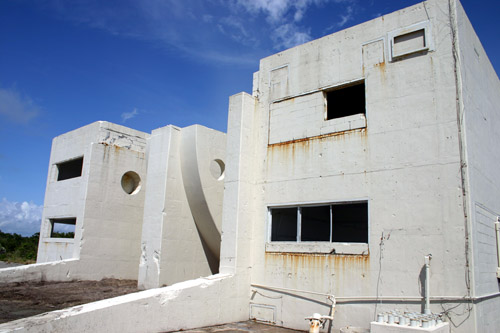

We are standing at the rear corner of the launch pad. The pipes you see coming out of the block in the right foreground of the photo were once electrical conduits. They ascended through an enclosure, and entered the launch structure in the small rectangular frame at the extreme top right.

Walk around to the side of the launch pad
Walk back to the south of the launch pad
Photo courtesy of Steve Sanders
Mission Flight Control Officer, CCAFS
